Tank-embedded S-type heat exchanger system
> Technical data > Tank-embedded S-type heat exchanger system
- Invention patent exclusive of [Sinwoo Integral Energy]
- Anti-scaling tank-embedded S-type heat exchanger system for heating and seawater / tank-embedded S-type heat exchanger cold and hot water temperature maintaining system
(patent 2011-0002984 / 2011-0002985 / 2011-0002986)

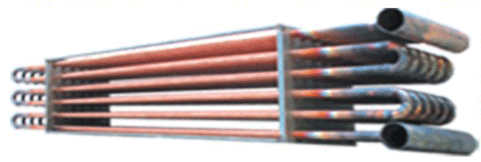

- What is an anti-scaling tank-embedded S-type heat exchanger system for heating and seawater?
about system - You don’t need a high-pressure boiler that has large amount of heat lost when exchanging heat from seawater to hot water and with large amount of management expense. It is a system that prevents the inefficiency of the boiler due to the scaling caused by calcium compound of underground water.
- ① It is installed with heat by separating the water in use (hot water) and water for heating in case case you need to heat while using hot water from the tank, and enables heating by installing 1-circuit boiler that can heat one place of the hot water tank instead of installing 2-circuit boiler. In particular, in case of heating only with the hot water produced from the heat pump system with inexpensive production cost, the energy can be saved by 60~80%.
- ② In case your workplace uses seawater or underground water, which has salt, that directly heats using existing boiler when producing hot water at the workplace, the expensive boiler breaks down. Replacing the hot water boiler by installing tank-embedded S-type heat exchanger at the workplace produces hot water through double heat exchange method using high steam boiler, which a large amount of heat is lost, can save energy by at least 25% to 35%. If the heat pump system is replaced, the condenser of main parts prevents crack from forming and can save energy by 70~80%.
- ③ In case the boiler becomes less efficient due to the production of scaling on the existing boiler because the underground water has many compounds of calcium, installing S-type heat exchanger can save energy by 30~40%. It prevents scaling on the condenser of main parts that it increases the efficiency of heat pump system, prevents break down that replacing with heat pump system can save energy by 70~80%.

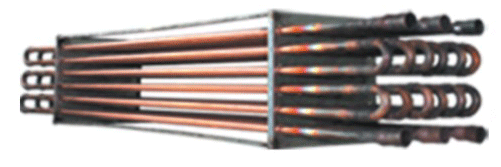

- What is a tank-embedded S-type heat exchanger cold and hot water temperature maintaining system?
about system - It is a system that saves energy by heating one part of a hot water tank without high-pressure steam boiler, which has large heat loss and costs large maintenance expense.
- ① In order to maintain the temperature of hot water using existing high pressure steam boiler, a high-temperature steam heat exchanger is used that it has large heat loss and costs large maintenance expense due to high heat created, but you can save energy by 35~50% by maintaining the temperature of hot water with low temperature hot water using tank-embedded S-type heat exchanger, and in case the temperature is maintained with the hot water produced from heat pump system, you can save energy by 70~80%.
- ② In case you have installed the tank-embedded S-type heat exchanger, you don’t need a high-pressure steam boiler and you can save large amount of energy since less heat is lost as only one place of a hot water tank is heated with existing hot water boiler.
- ③ Tank-embedded S-type heat exchanger cold water temperature maintaining system requires only one circulation pump, thus there is less electric charge and inexpensive management expense while existing plate type heat exchange system requires 2 circulating pump in one place.
